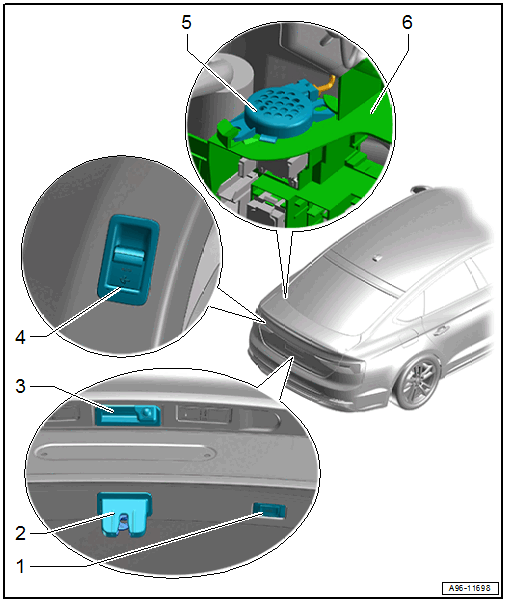

Overview - Luggage Compartment Controls, Coupe, SPORTBACK

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Lock Button in Luggage Compartment -E406-
   • Versions with Locking Mechanism Button in the Rear Lid -E806-.
   • Removing and Installing. Refer to Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING .
2. Rear Lid Contact Switch
   • Integrated in the rear lid latch. Cannot be replaced separately if faulty.
   • Rear Lid Latch, Replacing. Refer to LATCH, REMOVING AND INSTALLING .
3. Release Button In Rear Lid Handle -E234-
   • Removing and Installing. Refer to Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING .
4. Power Pivoting Trailer Hitch Button -E474-
   • Removing and Installing. Refer to Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
5. Rear Lid Warning Buzzer -H32-
   • The buzzer is activated by closing the rear lid using the rear lid remote release button in the front door
   • Removing and Installing. Refer to Rear Lid Warning Buzzer -H32-, REMOVING AND INSTALLING .
6. Relay and Fuse Panel 2 -SR2-
