Seat Belt Microphone Control Module, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the left front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fold back the carpet. Refer to OVERVIEW - FOOTREST AND CARPET .

-- Release and open the E-box cover.

The Seat Belt Microphone Control Module -J886- is only clipped into the E-box.

Courtesy of AUDI OF AMERICA, LLC

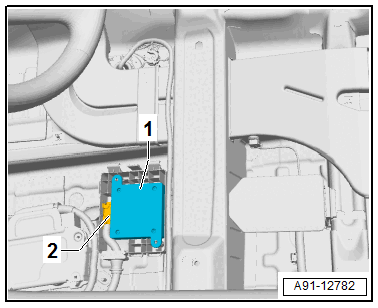

-- Remove the Seat Belt Microphone Control Module -J886- -1- from the E-box.

-- Release and disconnect the connectors -2-.
