Overview - Microphone Unit, Cabriolet

The microphone unit is comprised of the Microphone Unit in Front Roof Module -R164- and the Seat Belt Microphone Control Module -J886- with the seat belt microphones.

The Microphone Unit In Front Roof Module -R164- is installed in the Front Interior Lamp -W1-. Up to three microphones may be installed, depending on the equipment.

One microphone (Interior Microphone -R74-) is connected directly to the Digital Sound System Control Module -J525-. The other microphone is connected to the Information Electronics Control Module 1 -J794- /Seat Belt Microphone Control Module -J886-.

The Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1- can be replaced only as a complete unit. Replacing the individual microphones is not possible.

For IW3, the Left Front Microphone -R140- is connected to the Data Bus on Board Diagnostic Interface -J533- and is >>looped through<< at the Information Electronics Control Module 1 -J794-.

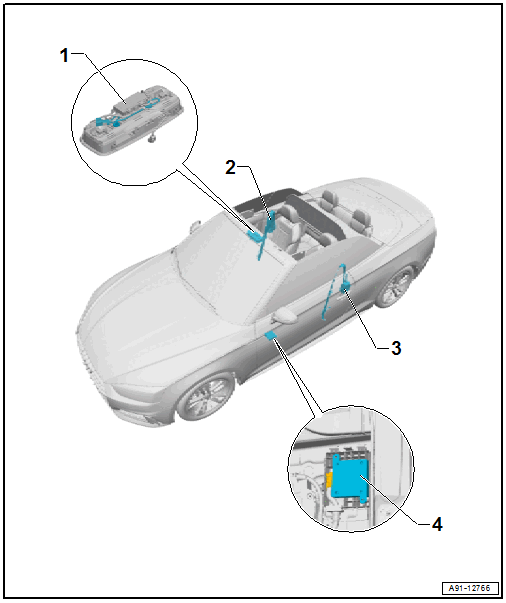

Courtesy of AUDI OF AMERICA, LLC

1. Microphone Unit in Front Roof Module -R164-
   • Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING, CABRIOLET .
2. Right Seat Belt Microphones
   • Cannot be replaced individually
   • Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
3. Left Seat Belt Microphones
   • Cannot be replaced individually
   • Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
4. Seat Belt Microphone Control Module -J886-
   • Connector Assignment. Refer to the appropriate Wiring Diagram.
   • Removing and Installing. Refer to SEAT BELT MICROPHONE CONTROL MODULE, REMOVING AND INSTALLING .

Microphone Unit in Front Roof Module R164

1. 4-Pin Connector -T4t-
2. Left Front Microphone -R140-, gray to the Information Electronics Control Module 1 -J794- /Seat Belt Microphone Control Module -J886-
3. Interior Microphone -R74- (black) to Digital Sound System Control Module -J525-

Connector Assignment

1 - 4-Pin Connector -T4t-

1. Microphone 1, Left Front Microphone -R140- to the Information Electronics Control Module 1 -J794- /Seat Belt Microphone Control Module -J886-
2. Microphone 1, Left Front Microphone -R140- to the Information Electronics Control Module 1 -J794- /Seat Belt Microphone Control Module -J886-
3. Microphone 2, Interior Microphone -R74- to the Digital Sound System Control Module -J525-
4. Microphone 2, Interior Microphone -R74- to the Digital Sound System Control Module -J525-

2 - Microphone 1, Left Front Microphone -R140-

3 - Microphone 2, Interior Microphone -R74-

Microphone Unit in Front Roof Module -R164-, Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING, CABRIOLET .

The Seat Belt Microphone Control Module -J886- is located under the left front seat. The seat belt microphones and the Left Front Microphone -R140- are connected to the Seat Belt Microphone Control Module -J886-.

The Seat Belt Microphone Control Module -J886- evaluates the signals and transmits the best signal to the Information Electronics Control Module 1 -J794-.

Courtesy of AUDI OF AMERICA, LLC

1. Seat Belt Microphone Control Module -J886-
2. Information Electronics Control Module 1 -J794-
3. CAN Bus
4. Driver Microphone 1 -R224-
5. Driver Microphone 2 -R225-
6. Driver Microphone 3 -R226-
7. Left Front Microphone -R140-, Microphone Unit in Front Roof Module -R164-
8. Front Passenger Microphone 1 -R227-
9. Front Passenger Microphone 2 -R228-
10. Front Passenger Microphone 3 -R229-
