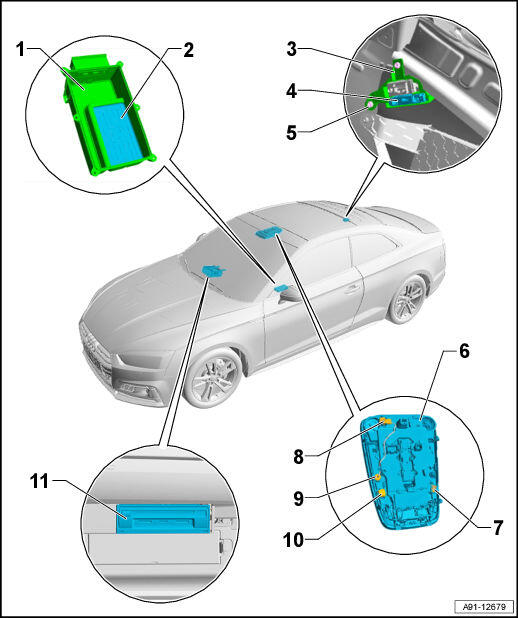

Component Location Overview - Telephone System
NOTE:
The component locations are shown on a Coupe. The component locations for the other vehicle models are the same.
- Center Console Storage Compartment
- Removing and installing. Refer to OVERVIEW - CENTER CONSOLE .
- Telephone Baseplate -R126-
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
- Bracket
- Cellular Telephone Amplifier -R86-
- Behind the luggage compartment right side trim
- The appropriate Wiring Diagram
- Removing and Installing, Coupe/Sportback. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, COUPE/SPORTBACK .
- Removing and Installing, Cabriolet. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, CABRIOLET .
- Nut
- 3 Nm
- Quantity: 2
- Front Interior Lamp -W1-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- 4-Pin Connector -T4-, black
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- 4-Pin Connector -T4dc-, Black
- Interior Microphone -R74-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- 4-Pin Connector -T4-, red
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- The appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
