Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, COUPE/SPORTBACK: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

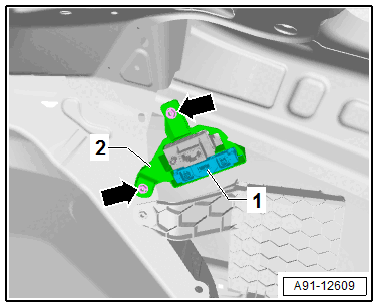

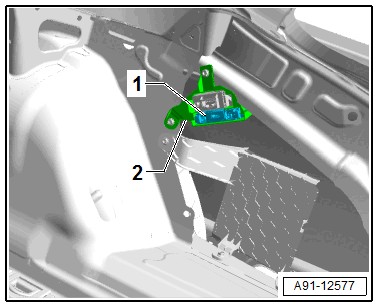

The Cellular Telephone Amplifier -R86- -1- is locked into place in the bracket -2-.
It must first be removed with the bracket -2-.
-- The connectors must be released and disconnected from the Cellular Telephone Amplifier -R86- -1- and from the Parking Heater Radio Receiver -R64-.
-- Remove the nuts -arrows- from the bracket -2-, and remove the bracket.
-- Remove the Cellular Telephone Amplifier -R86- -1- from the bracket -2-.
