Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING, CABRIOLET: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

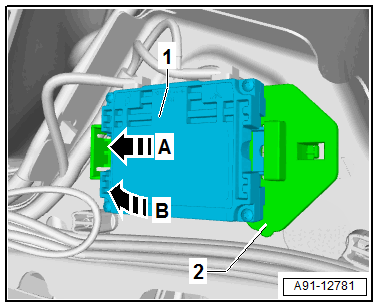

The Cellular Telephone Amplifier -R86- -1- is locked into place in the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the tab -arrow A- and pry out the Cellular Telephone Amplifier -R86- -1- in the direction of the arrow -B-.

-- Release and disconnect the connectors from the Cellular Telephone Amplifier -R86- -1-.
