Subwoofer -R211-, REMOVING AND INSTALLING, SPORTBACK: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the luggage compartment floor.

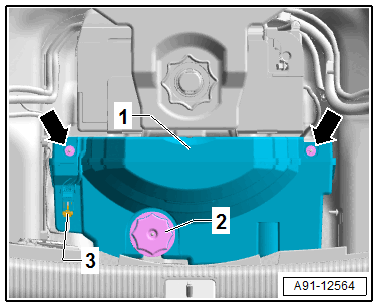

-- Release and disconnect the connector -3- from the Subwoofer -R211- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -2- from the Subwoofer -R211- -1-.

-- Remove the nuts -arrows- from the Subwoofer -R211- -1-.

-- Remove the Subwoofer -R211- -1- upward and out of the spare tire well.
