Left And Right Rear Treble Speaker -R14- / -R16-, Removing And Installing, SPORTBACK: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear door trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING .

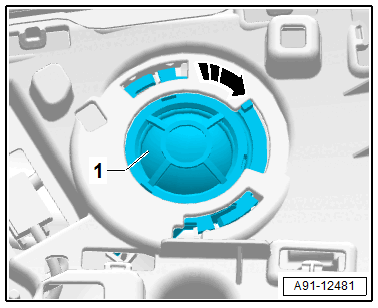

-- Release and disconnect the connector from the Left Rear Treble Speaker -R14- -1-.

GWWA91-12481Courtesy of AUDI OF AMERICA, LLC

-- Turn the Left Rear Treble Speaker -R14- -1- in the direction of -arrow- until it can be removed from the door trim panel.
