Left Effects Speaker -R209- /Right Effects Speaker -R210-, REMOVING AND INSTALLING, CABRIOLET: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the side trim panel. Refer to OVERVIEW - SIDE TRIM PANEL .

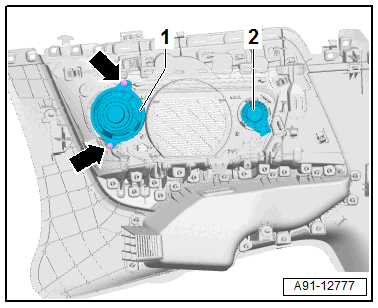

-- Release and disconnect the connector from the Left Effects Speaker -R209- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the Left Effects Speaker -R209- -1- from the side trim panel cover.
