Rearview Camera -R189-, REMOVING AND INSTALLING, COUPE/SPORTBACK: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

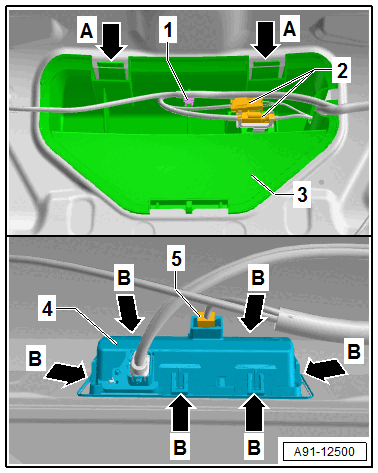

-- Release and disconnect the connectors -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cable bracket -1- from the anti-theft protection -3-.

-- Release the retainers -A arrows-.

-- Remove the anti-theft protection -3- from the rear lid.

-- Release and disconnect the connector -5-.

-- Release the catches -B arrows-.

-- Remove the handle button -4- from the rear lid.
