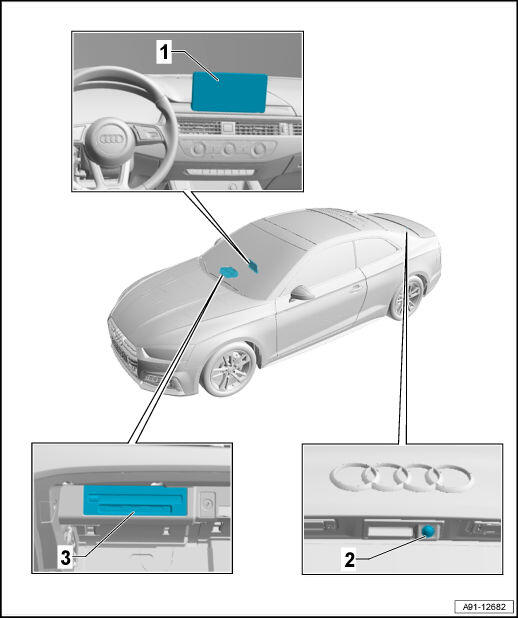

Component Location Overview - Rearview Camera System
NOTE:
The component locations are shown on a Coupe. The component locations for the other vehicle models are the same.
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- The appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Rearview Camera -R189-
- With Rearview Camera System Control Module -J772-
- The appropriate Wiring Diagram
- Removing and Installing, Coupe/Sportback. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Removing and Installing, Cabriolet. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING, CABRIOLET .
- Cabriolet bracket bolt/nut: 4 Nm
- Calibrating. Refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- The appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
