Rear Peripheral Camera -R246-, REMOVING AND INSTALLING, COUPE/SPORTBACK: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

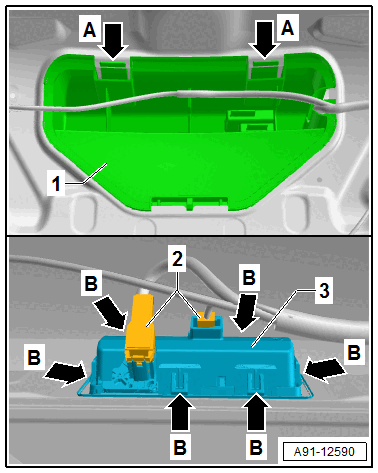

-- Release the retainers -arrows A-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the anti-theft protection -1- from the rear lid.

-- Release and disconnect the connectors -2-.

-- Release the catches -B arrows-.

-- Remove the handle button -3- from the rear lid.
