Rear Peripheral Camera -R246-, REMOVING AND INSTALLING, CABRIOLET: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

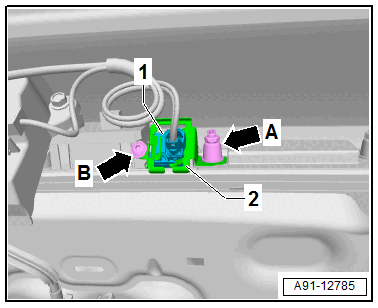

-- Release and disconnect the connector from the Rear Peripheral Camera -R246- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -arrow A-.

-- Remove the screw -arrow B-.

-- Remove the bracket -2-.

-- Remove the Rear Peripheral Camera -R246- -1- from the grip piece.
