Infotainment System Display, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front passenger side instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

With removal from the front passenger side instrument panel vent the bolts are accessible.

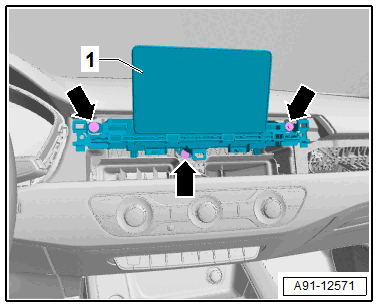

-- Remove the screws -arrows- and remove the Front Information Display Control Head -J685- -1- from the instrument panel.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors.
