Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, CABRIOLET, THROUGH MY 2018 AND FROM MY 2019, WITHOUT CONNECT PLUS (IV0): Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

The Emergency Call Module Antenna 2 -R322- is clipped into the bracket of the Data Bus on Board Diagnostic Interface -J533-.

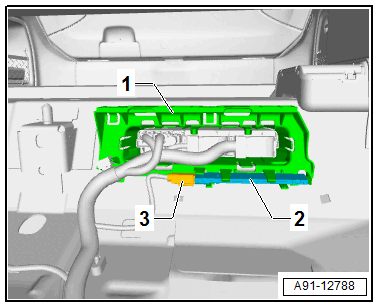

-- Unclip the Emergency Call Module Antenna 2 -R322- -2- from the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -3-.
