Emergency Call Module Antenna 2 -R322-, REMOVING AND INSTALLING, CABRIOLET, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8): Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the convertible top compartment cover trim panel. Refer to Convertible Top .

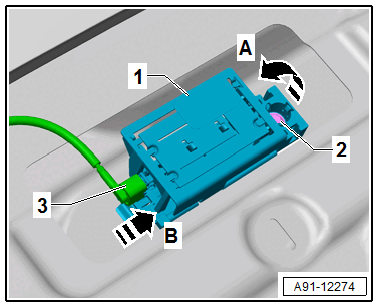

-- Release and disconnect the connector -3- from the Emergency Call Module Antenna 2 -R322- -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -2- for the Emergency Call Module Antenna 2 -R322- -1-.

-- First tilt the Emergency Call Module Antenna 2 -R322- -1- upward on the left side in direction of -arrow A-.

-- Then slide the Emergency Call Module Antenna 2 -R322- to the left in direction of -arrow B- and remove it.
