Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, SPORTBACK, FROM MY 2019 WITH CONNECT PLUS (IV1 THROUGH IV8): Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the left C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector.

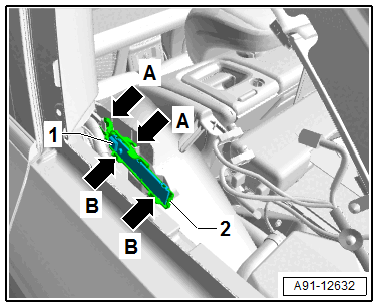

GWWA91-12632Courtesy of AUDI OF AMERICA, LLC

-- First unclip the bracket -2- -A arrows-.

-- Unclip the Emergency Module Antenna -R263- -1- from the bracket -2- -B arrows-.
