Overview - Automatic Headlamp Range Control

Courtesy of AUDI OF AMERICA, LLC

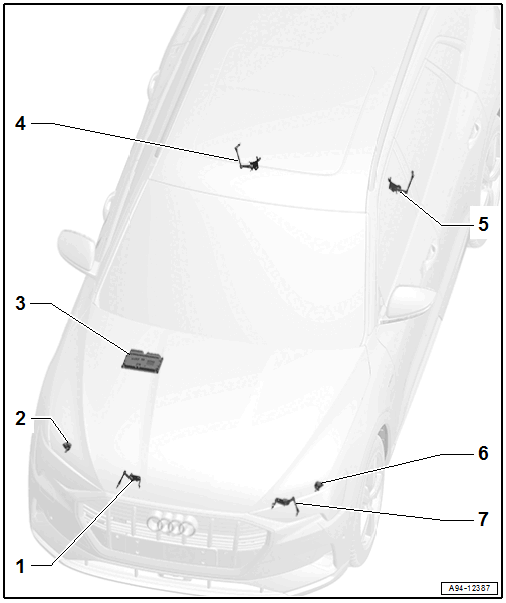

1. Right Front Level Control System Sensor -G289-
   • Component location: on the front control arm
   • Removing and installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
2. Right Headlamp Beam Adjustment Motor -V49-
   • Integrated in the headlamp
   • Cannot be replaced separately if faulty.
   • Replacing. Refer to HEADLAMP, REMOVING AND INSTALLING .
3. Vehicle Electrical System Control Module -J519-
   • Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
4. Right Rear Level Control System Sensor -G77-
   • Component location: on the rear control arm
   • Removing and installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
5. Left Rear Level Control System Sensor -G76-
   • Component location: on the rear control arm
   • Removing and installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
6. Left Headlamp Beam Adjustment Motor -V48-
   • Integrated in the headlamp
   • Cannot be replaced separately if faulty.
   • Replacing. Refer to HEADLAMP, REMOVING AND INSTALLING .
7. Left Front Level Control System Sensor -G78-
   • Component location: on the front control arm
   • Removing and installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
