Engine Oil Cooler, Removing And Installing: Removing

Depending on the model preliminary work may be required. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .

-- Remove the bolt -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1 and 2-, remove the coolant hoses and push to the side.

-- To collect escaping engine oil, place a cloth under the oil filter housing.

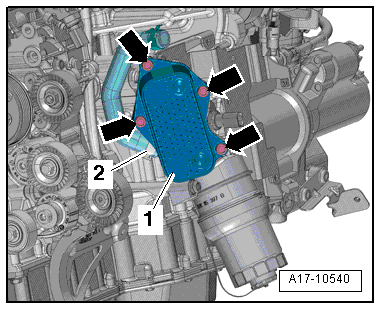

Fig 1: Engine Oil Cooler

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove engine oil cooler -1-, remove coolant hose, and loosen the hose clamp -2-.
