Engine Cover, Removing And Installing
WARNING: This page is about a different variant/trim than selected.

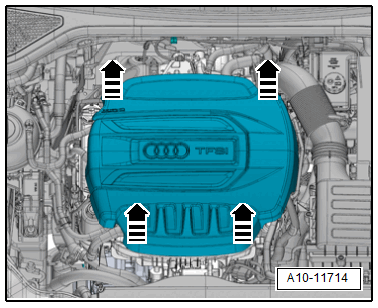

Removal, Version 1:
-- Carefully pull the engine cover off the retaining pins one after the other -arrows-. Do not pull sharply on the engine cover or pull it to one side.

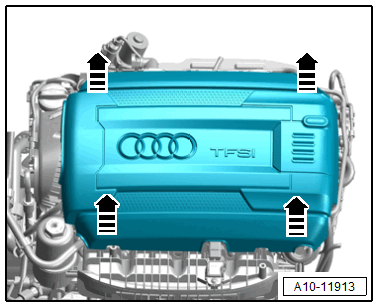

Removal, Version 2:
-- Carefully pull the engine cover off the retaining pins one after the other -arrows-. Do not pull sharply on the engine cover or pull it to one side.
Installing
-- To prevent damage to the engine cover, do not hit it with a fist or a tool.
-- Position the engine cover while paying attention to the oil filler tube and oil dipstick.
-- Press the engine cover into the rubber grommets on the left side first, then into the ones on the right side.
