Spoiler, Adjusting

The following components must be replaced after removal. Refer to OVERVIEW - SPOILER .

Procedure

-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

Electric spoiler:

-- Extend the spoiler. Refer to the Owner's Manual.

-- Unclip the mount -1- for the water drain in direction of -arrows- and push through downward.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the spoiler.

Fixed Spoiler:

Courtesy of AUDI OF AMERICA, LLC

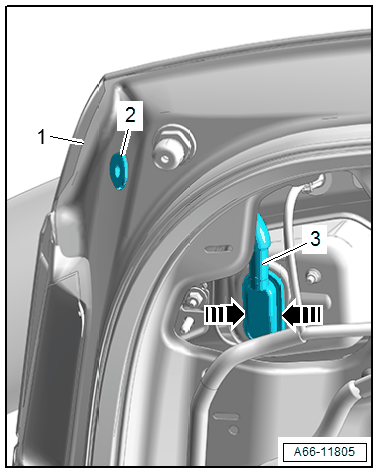

-- Pry out the water drain hose -2- toward the inside from the rear lid -1-.

-- Destroy the mount -3- for the water drain on the sides in direction of -arrows- and remove.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Adjust the height adjustment bolts -arrows- accordingly to adjust the height of the spoiler.

Courtesy of AUDI OF AMERICA, LLC

-- Align the spoiler in the installation opening for the side adjustment.

-- Tighten the bolts -arrows- hand-tight.

Courtesy of AUDI OF AMERICA, LLC

-- Check the adjustment dimension again.

-- Tighten the spoiler bolts.

Tightening Specifications
