Fuel Level Sensor -G-, REMOVING AND INSTALLING: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
NOTE:
Be careful not to bend the floater arm on the fuel level sensor when inserting.
-- Carefully guide the Fuel Level Sensor -G- through the installation opening in the fuel tank.
-- Insert the Fuel Level Sensor -G- into the mount on the baffle housing and push downward until it engages.

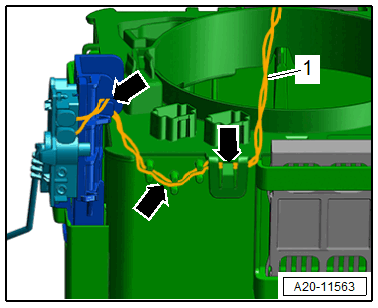

-- Engage the wire -1- to the baffle housing and route -arrows- as shown.
-- Install the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
