CONNECTION DIAGRAM - EVAP SYSTEM, VEHICLES WITH Fuel Tank Leak Detection Module - GX36-

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

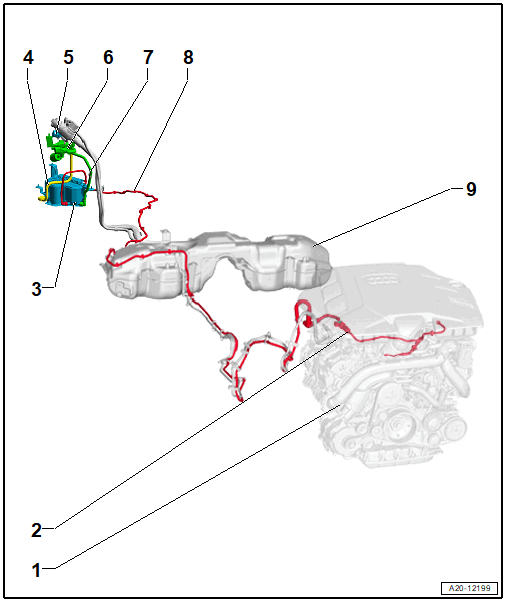

GWWA20-12199Courtesy of AUDI
  1. Engine
  2. EVAP Canister Purge Regulator Valve 1 -N80-
  3. EVAP Canister
  4. Bleeder Line
    • From the Fuel Tank Leak Detection Module -GX36-
  5. Tank Switch-Off Valve -N288-
    • Installed depending on the vehicle version
  6. Fuel Tank Leak Detection Module -GX36-
  7. Bleeder Line
    • Tank Switch-Off Valve -N288-
  8. Bleeder Line
    • To the EVAP Canister Purge Regulator Valve 1 -N80-
  9. Fuel Tank
