Air Ionization System Control Module -J897-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Infotainment system display. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .

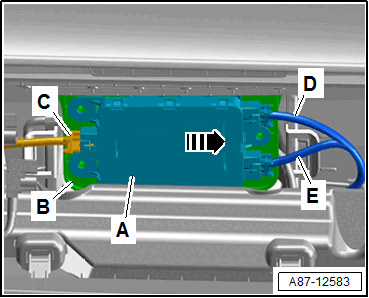

-- Release and disconnect the connectors -C, D and E-.
-- Push the Air Ionization System Control Module -J897- -A- in the direction of the -arrow- out of the mount -B-.
