Air Freshening System Control Module -J1101- WITH Fragrance Diffuser System Blower -V686-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

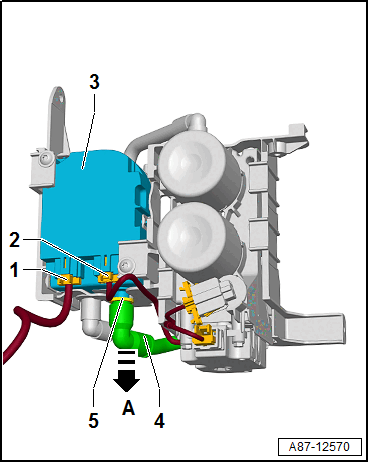

-- Release and disconnect the connectors -1 and 2-.
-- Press the locking mechanism -5- in the direction of -arrow A- and at the same time, remove the hose -4- from the Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686- -3-.

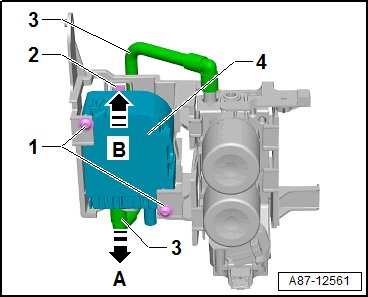

-- If equipped, remove the bolts -1-.
-- Release the locking mechanism -2- and push the Air Freshening System Control Module -J1101- with the Fragrance Diffuser System Blower -V686- -4- in the direction of -arrow B-, o do so remove the hose -3- in the direction of -arrow A- at the same time.
