A/C System Particulate Matter Concentration Sensor -G930-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

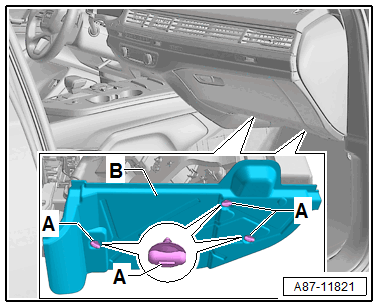

-- Remove the screw clips -A-.
-- Loosen the footwell cover -B- from the heater and A/C unit air intake housing and remove.

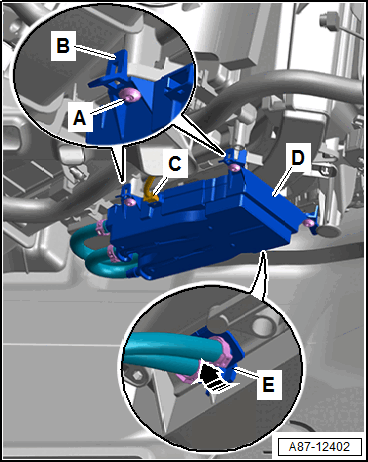

-- Release and disconnect the connector -C-.
-- Remove the bolts -A-.
-- Release the retainers -B- and move the sensor -D- to the side.
-- Release the retainer in the direction of -arrow- and disengage the connection -E-.
-- Remove the sensor -D-.
