Fresh Air Intake, Removing And Installing, Version 2: Installing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Check the fresh air intake and related seal for damage and correct assembly before installing.
-- Check before installing the components of the fresh air intake, the plenum chamber, and the water drains present for debris and damage if necessary clean. Refer to PLENUM CHAMBER WATER DRAIN, REMOVING AND INSTALLING .

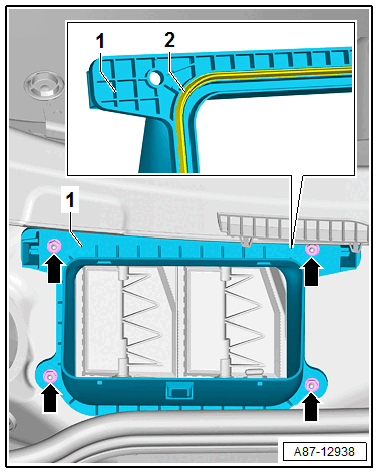

-- Check the bonded seal -2- between the air intake shroud and the body for damage.
-- Tighten the nuts or bolts -arrows- diagonally in multiple steps to the specified tightening sequence
