Sunlight Photo Sensor -G107-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with High-Voltage System
-- Switch off (deactivate) the "parking air conditioner".Refer to Owner's Manual.
Continuation for all vehicles
-- Switch off the ignition.

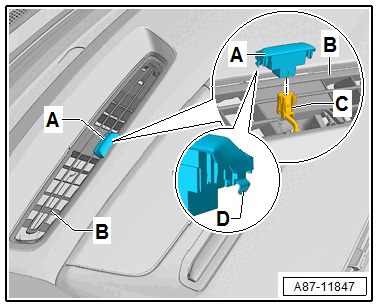

-- Carefully pry the Sunlight Photo Sensor -G107- -A- out of the defroster vent -B- (for the windshield) using a small screwdriver.
-- Release and remove the connector -C-.
