Left Footwell Vent Temperature Sensor -G261-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
LHD vehicle
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
RHD vehicles
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
Continuation for all vehicles

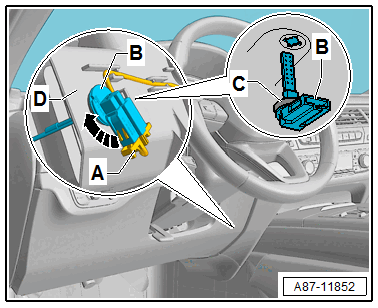

-- Grab behind the instrument panel and release and disconnect the connector -A-.
-- Turn the sensor -B- 90° and remove from the heater and A/C unit air duct -D-.
