Engine, Removing, AUDI Q7/Q8

Special tools and workshop equipment required

• Pry Lever:80-200
  Fig 1: Identifying Pry Lever

  Courtesy of AUDI
• Engine Bung Set:VAS 6122
  Fig 2: Engine Bung Set

  Courtesy of AUDI
• Scissor Lift Table:VAS 6131B
  Fig 3: Scissor Lift Table (VAS6131B)

  Courtesy of AUDI
• Scissor Lift Table - Audi Set:VAS 6131/10
  Fig 4: Identifying Scissor Lift Table - Audi Set VAS 6131/10

  Courtesy of AUDI
• (Quantity: 2) Scissor Lift Table - A8 Set - Mounting :VAS 6131/11-4  from Scissor Lift Table - A8 Set:VAS 6131/11  , not illustrated
• (Quantity: 2) Scissor Lift Table - A6 Set - Mounting Pins:VAS 6131/12-2  from Scissor Lift Table - A6 Set:VAS 6131/12  , not illustrated
• (Quantity: 2) Threaded spindle from the Scissor Lift Table - Q7 Set:VAS 6131/13
  Fig 5: Identifying Scissor Lift Table - Q7 Set VAS 6131/13

  Courtesy of AUDI
• Shop Crane - Drip Tray:VAS 6208
  Fig 6: Identifying Drip Tray

  Courtesy of AUDI
• Hose Clip Pliers:VAS 6340
  Fig 7: Hose Clip Pliers VAS6340

  Courtesy of AUDI
• Hose Clip Pliers:VAS 6362
  Fig 8: Hose Clip Pliers

  Courtesy of AUDI
• Wrench - 21mm:T40263
  Fig 9: Identifying Wrench - 21mm

  Courtesy of AUDI
• Adapter:T40314
  Fig 10: Adapter T40314

  Courtesy of AUDI
• 24 mm Socket
• Protective Eyewear
• Safety Gloves

Procedure

• With the lock carrier installed, the engine is removed downward with the transmission.
• During installation, all cable ties must be installed at the same location.
• During installation, all heat shield boots must be installed at the same location.
• Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
• All suspension component bolts with bonded rubber bushings on vehicles with coil spring in the curb weight position (unloaded condition) or in the control position on vehicles with air suspension must be tightened.
• Bonded rubber bushings have a limited range of rotation. Axle components with bonded rubber bushings must be brought into the position they will be in when driving before they are tightened (curb weight position or control position). Otherwise, the bonded rubber bushing will be under stress, which will reduce the service life.

-- Before starting the procedures, determine the curb weight position (refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING or determine the control position (refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION ).

• The electro-mechanical parking brake must be released before disconnecting battery so the driveshaft can be rotated to remove it.

-- Position the wheels so that they are straight.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

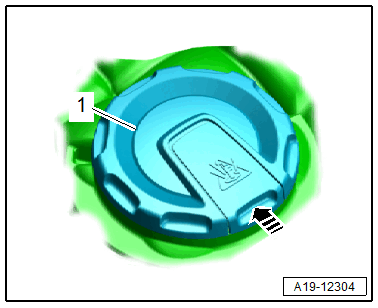

-- Open the cover -1- for the coolant expansion tank by releasing the catch -arrow-.

-- Remove the front wheels. Refer to WHEELS AND TIRES .

-- Remove the front right wheel housing liner front section. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Loosen the left front wheel housing liner in the front area and push slightly toward the rear. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the noise insulations. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the lower longitudinal member. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .

-- Place the Shop Crane - Drip Tray:VAS 6208  underneath.

Courtesy of AUDI

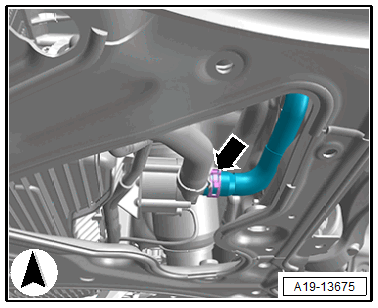

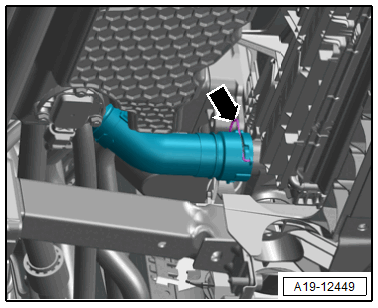

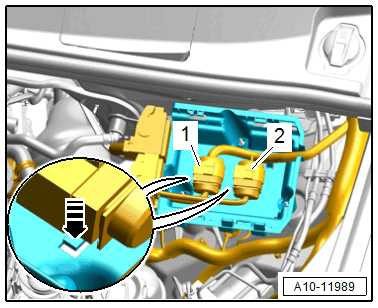

-- Lift the clamp -arrow- and remove the coolant hose from the radiator and drain the coolant.

-- Lift the clamp -arrow- and remove the coolant hose.

Courtesy of AUDI

-- Hold the coolant hose downward and allow the coolant to drain.

-- Open the heat shield boot.

Courtesy of AUDI

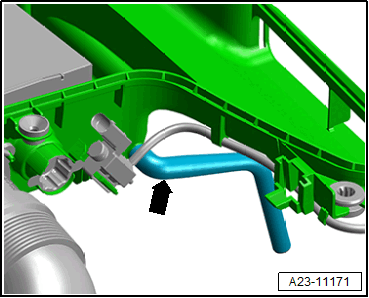

-- Loosen the hose clamp -arrow-, remove the coolant hose from the Coolant Recirculation Pump -V50-, and allow the coolant to drain.

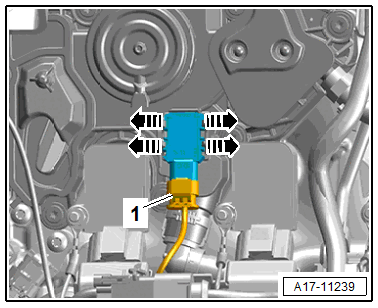

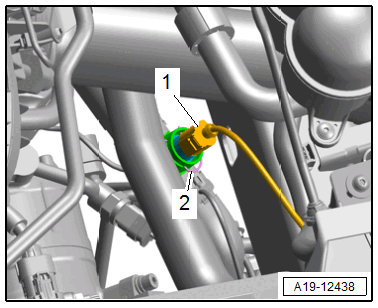

-- Disconnect the connector -1- from the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.

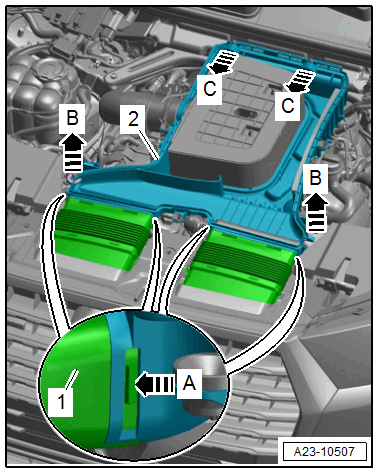

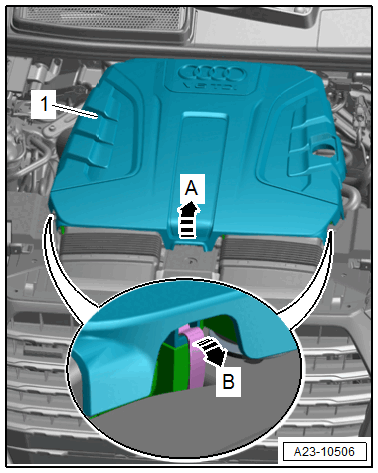

-- Open the left and right clip -arrow B-.

Courtesy of AUDI

-- Remove the air filter upper section -1- in the center toward the rear from the ball pins -arrow A- and disengage from the air filter lower section (example illustration).

-- Remove the air filter upper section.

-- Disconnect the connector -3- for the Air Filter Bypass Door Valve -N275- and free up the wire.

Courtesy of AUDI

-- Loosen the hose clamp -2- and remove the air duct pipe.

-- Disconnect the vacuum hose -4-.

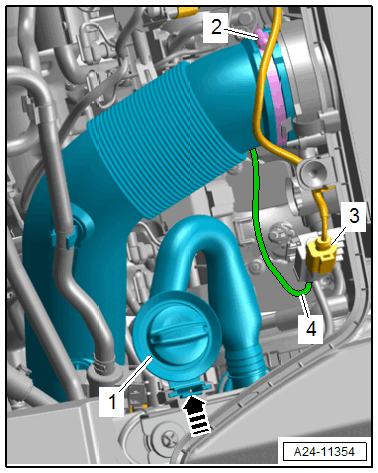

-- Release the retainer -arrow- and remove the oil filler tube -1- upward from the air filter lower section.

-- Pay attention to the water drain hose -arrow- when removing the air filter housing.

Courtesy of AUDI

-- Release the retainer -arrow A- and remove the air ducts -1- from the air filter lower section -2-.

Courtesy of AUDI

-- Remove the front air filter lower section from the ball pin upward -B arrows- and then remove the rear mount toward the front -C arrows-.

-- Release the retainer -arrow- and open the E-box.

Courtesy of AUDI

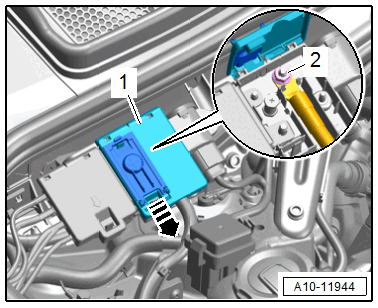

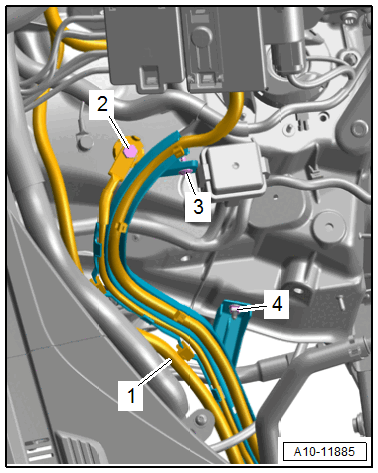

-- Remove the nut -2- and free up the B+ wire.

-- Free up the wire -1- on the wiring duct.

Courtesy of AUDI

-- Remove the bolt -2- and free up the ground wire.

-- Remove the bolt -3- and nut -4- and free up the wiring duct.

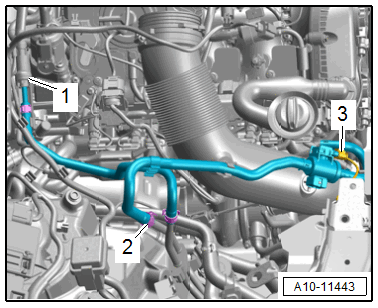

-- Disconnect the fuel hose -1-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

-- Loosen the hose clamp -2-, disconnect the EVAP system hose, and free it up from the air duct pipe.

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS 6122  .

-- If installed, disconnect the connector -3- for the Fuel Tank Pressure Sensor 2 -G850-.

-- Open the heat shield boot.

Courtesy of AUDI

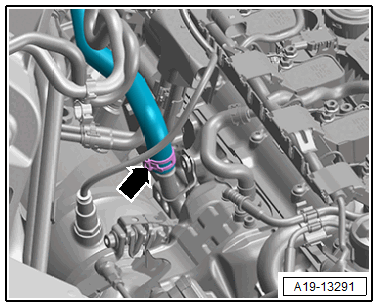

-- Loosen the hose clamp -arrow- and remove the coolant hose.

Vehicles with a particulate filter:

Courtesy of AUDI

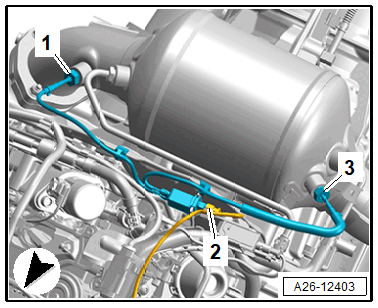

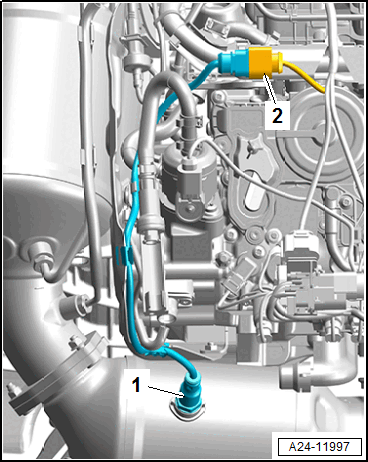

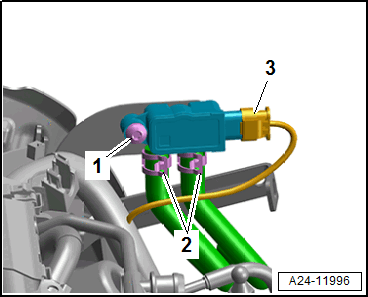

-- Disconnect the connector -2- for the Particulate Filter Differential Temperature Sensor -GX41-.

-- If the engine and transmission are to be separated: remove the connector from the bracket and free up the wires.

-- Disconnect the connector -3- for the Particulate Filter Differential Pressure Sensor -G1037-.

-- If the engine and transmission are to be separated, remove the bolt -1- and free up the differential pressure sensor.

Continuation for All Vehicles:

-- Disconnect the connector -2- for Oxygen Sensor 1 after Catalytic Converter -GX7- -item 1- (example illustration).

-- If installed, disconnect the connector -1- for the Tank Ventilation Pressure Sensor 1 -G950-, then free up the wire.

Courtesy of AUDI

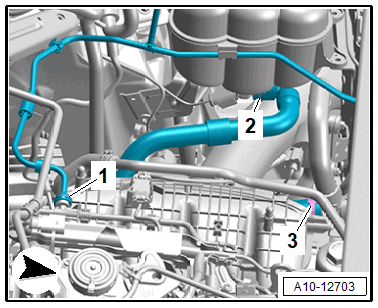

-- Lift the clamps -1 and 2- and remove the coolant hoses.

Courtesy of AUDI

-- Loosen the hose clamp -3- and remove the coolant hose.

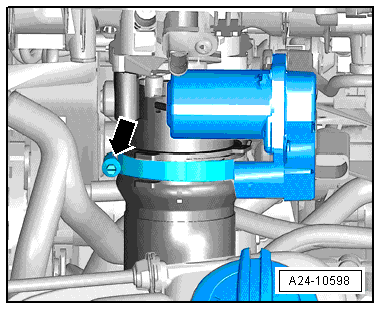

-- Loosen the screw-type clamp -arrow- and remove the air duct hose from the Throttle Valve Control Module -GX3-.

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS 6122  .

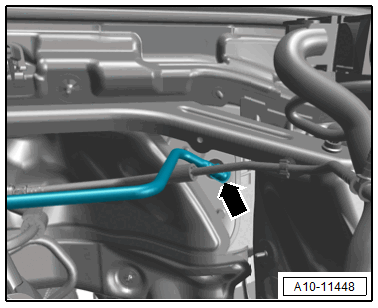

-- Remove the brake booster vacuum hose -arrow- from the plenum chamber bulkhead.

Courtesy of AUDI

-- Disconnect the connector -2-.

Courtesy of AUDI

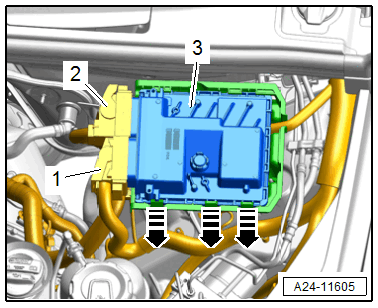

-- Release the catches -arrows-, remove the Engine Control Module -J623- -item 3- and set it to the side.

-- Disconnect the connector -2-.

Courtesy of AUDI

-- Release the retainer -arrow- to remove the connector to the side (example image).

-- Free up the engine wiring harness and set it on the engine.

Vehicle without particulate filter:

Courtesy of AUDI

-- Remove the front muffler nut -2- that is accessible from the top.

-- Remove the nuts -1 and 3- and bolt -4- for the front muffler.

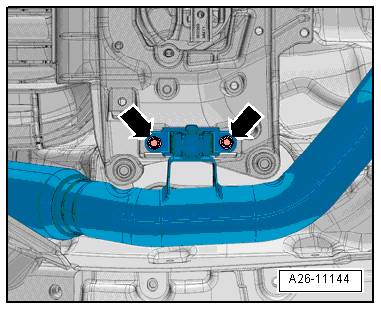

-- Remove the front muffler bolts -arrows-.

Vehicles with a particulate filter:

Courtesy of AUDI

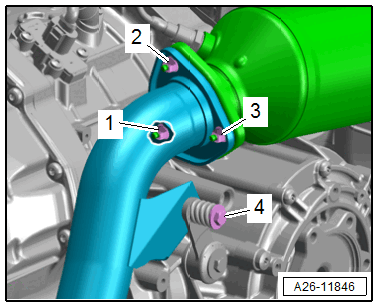

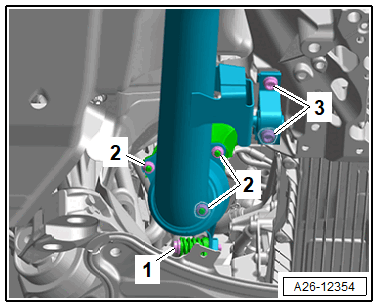

-- Remove the nuts -2- and bolts -1 and 3- for the front muffler.

Continuation for All Vehicles:

-- Loosen the clamping sleeve -arrows- and push toward the rear.

-- Remove the front muffler.

-- Remove the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

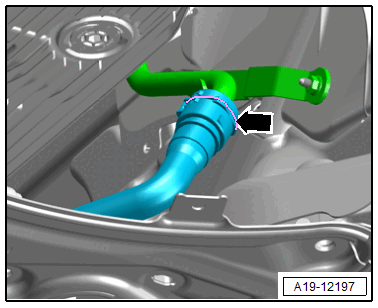

-- Loosen the hose clamp -arrow- and remove the air duct hose at the right from the turbocharger.

Courtesy of AUDI

-- Seal off any open lines and connections with plugs that are thoroughly cleaned from the Engine Bung Set:VAS 6122  .

-- Remove the nut -4- and free up the ground wire.

Courtesy of AUDI

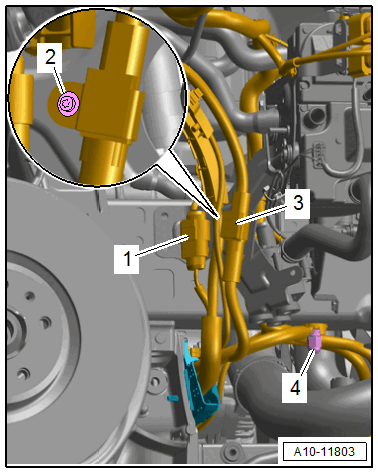

-- Remove the bolt -2-.

-- Disconnect the connectors -1 and 3- and free up the wires.

-- Remove the subframe. Refer to SUBFRAME WITH STEERING GEAR, REMOVING AND INSTALLING .

-- Detach the left and right drive axles from the transmission. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Remove the A/C compressor from the bracket and tie it up on the left side. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .

Courtesy of AUDI

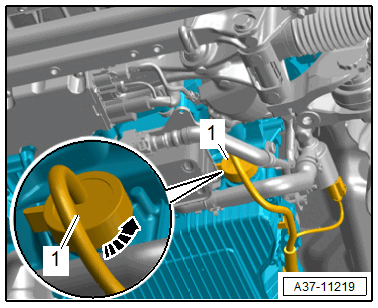

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector -1- from the transmission.

-- Free up the wiring harness on the transmission.

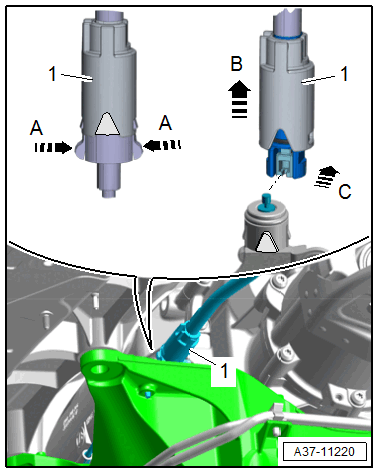

-- Release the retainers -A arrows- and slide the sleeve -1- on the emergency release cable in the -direction of the arrow B-.

Courtesy of AUDI

-- Disengage the rear section of the emergency release cable from the front section of the emergency release cable -arrow C-.

If the engine should be separated from the transmission:

Courtesy of AUDI

-- Loosen the hose clamp -3- and remove the coolant hose.

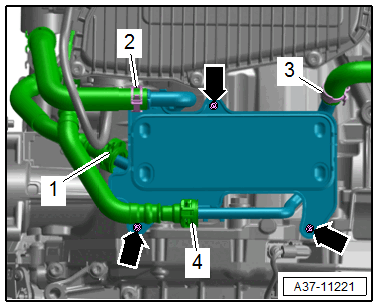

-- Remove the bolts -arrows- and push the ATF cooler slightly to the side with the ATF pipe/hose lines -1 and 4- attached.

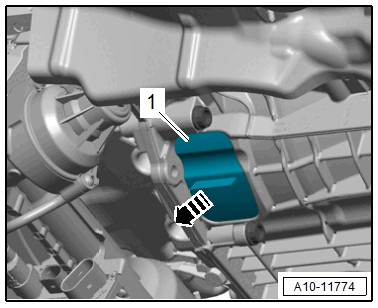

-- Remove the lower cover -1- from the transmission -arrow-.

Courtesy of AUDI

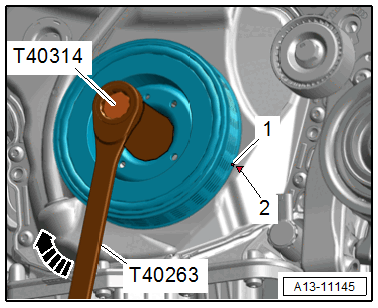

-- To loosen the torque converter bolts, use the Wrench - 21mm:T40263  , Adapter:T40314  and 24 mm socket to counterhold the crankshaft.

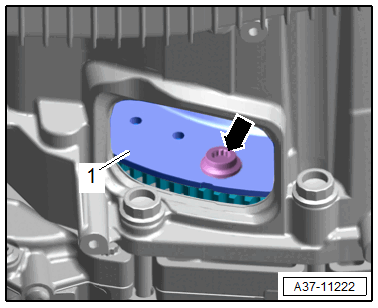

-- Remove the six bolts -arrow- for the torque converter on the drive plate -1-.

Courtesy of AUDI

-- Turn the crankshaft an additional 60° in the direction of engine rotation.

Scissor Lift Table, Preparing:

-- Equip the Scissor Lift Table:VAS 6131B  as follows:

Table Coordinates	Components from :VAS 6131/10  , adapter from Scissor Lift Table - A8 Set - Mounting :VAS 6131/11-4  , Scissor Lift Table - A6 Set - Mounting Pins:VAS 6131/12-2  and the Threaded Spindle from Scissor Lift Table - Q7 Set :VAS 6131/13
B7	/10-1	/12-2	Threaded spindle from Scissor Lift Table - Q7 Set :VAS 6131/13	/11-4
G7	/10-1	/12-2	Threaded spindle from Scissor Lift Table - Q7 Set :VAS 6131/13	/11-4
C17	/10-1	/10-2	/10-5	/10-7
F15	/10-1	/10-3	/10-5	/10-13

-- Secure the mounting elements to the scissor lift table by hand.

-- Position the Scissor Lift Table:VAS 6131 B  horizontally.

• Note the bubble level (sight glass) on support platform.

-- Guide the Scissor Lift Table:VAS 6131 B  under the engine/transmission assembly.

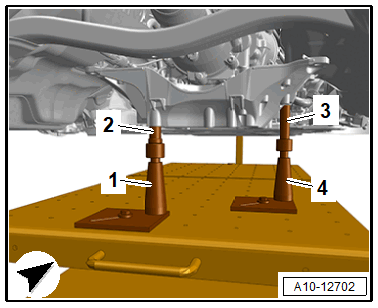

-- Install the mounting elements from the Scissor Lift Table - Audi Set :VAS 6131/10  as shown on the tunnel crossmember.

Courtesy of AUDI

-- Pay attention that the right threaded spindle is completely installed.

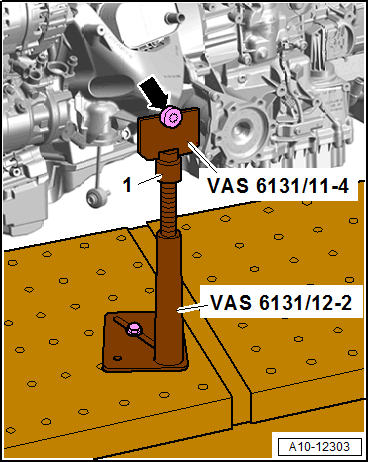

-- Position the mounting elements from :VAS 6131/10  , adapter from Scissor Lift Table - A8 Set - Mounting : VAS 6131/11-4  , Scissor Lift Table - A6 Set - Mounting Pins: VAS 6131/12-2  and the Threaded Spindle -1- from the Threaded Spindle from Scissor Lift Table - Q7 Set:VAS 6131/13  to the left and right as shown.

Courtesy of AUDI

-- Install the bolt -arrow- for the engine mount all the way on the adapter.

-- Rotate the remaining mounting element spindles upward until all the mounting pins come in contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the Scissor Lift Table:VAS 6131B  .

-- Disengage the Engine Support Bridge - Spindle:10-222A/11

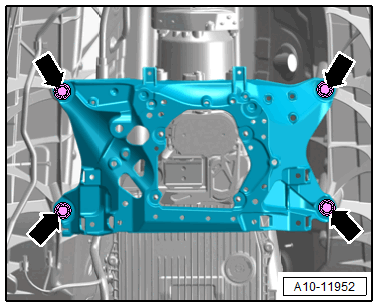

-- Remove the bolts -arrows- on the tunnel crossmember.

Courtesy of AUDI

-- Lower the Scissor Lift Table:VAS 6131B  with the engine/transmission assembly and remove from under the vehicle.
