BRACKET FOR Fragrance System Functional Unit -GX43- AND Air Freshening System Control Module -J1101-, EMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

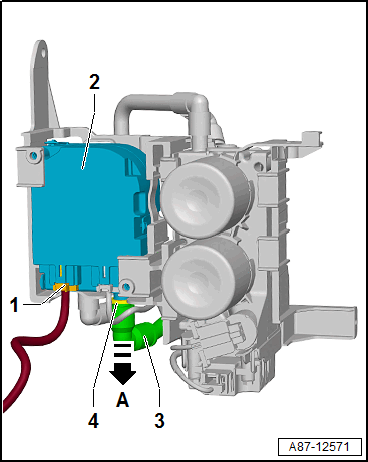

-- Release and disconnect the connector -1-.

CAUTION:

Risk of fragrance leaking when tilting the.

- If there is a fault in the Air Freshening System Control Module -J1101-, he Fragrance System Functional Unit -GX43- or the Fragrance Diffuser System Actuator -V687-, he fragrance container valves may be open.

- If fragrance system components are faulty, then both containers with fragrance must be removed before removing the bracket.

-- Press the locking mechanism -4- in the direction of -arrow A- and at the same time, remove the hose -3- from the Air Freshening System Control Module -J1101- with Fragrance Diffuser System Blower -V686- -2-.

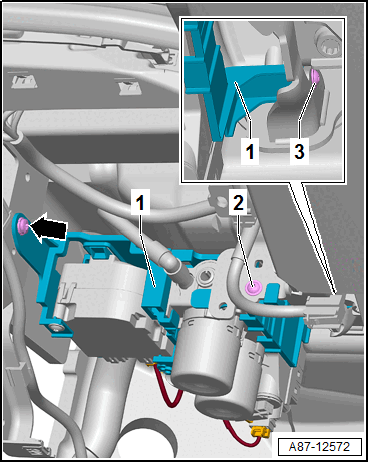

-- Remove the expanding rivet -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3-.

-- Remove the bracket with the Fragrance System Functional Unit -GX43- and Air Freshening System Control Module -J1101- -1-.
