Outside Air Temperature Sensor -G17-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with High-Voltage System
-- Switch off (deactivate) the "parking air conditioner".Refer to Owner's Manual.
Continuation for all vehicles
-- Switch off the ignition.
Vehicles without radiator shutter
-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .
-- If the upper air duct is installed, loosen the mounting bracket with the release cable for the operating lever hook and fold it back. Refer to OVERVIEW - RELEASE CABLE .
Vehicles with radiator shutter
-- Remove the end panel cover. Refer to OVERVIEW - BUMPER COVER .
Continuation for all vehicles
TIP

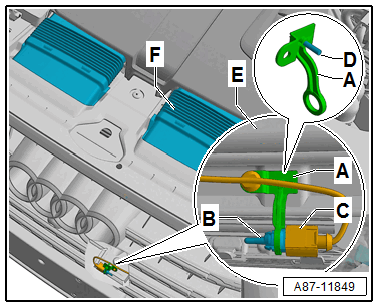

- The bracket for the temperature sensor -A- depending on the version is either secured with an expanding clip -D- or with a bolt on the impact member of the bumper -E-.
-- Disconnect the connector -C- on the temperature sensor -B- and unclip the temperature sensor from the bracket -A-.
