Instrument Panel Temperature Sensor -G56-, EMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7, 2024 Audi Q7, 2023 Audi SQ7, and 2023 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lower steering column trim panel. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

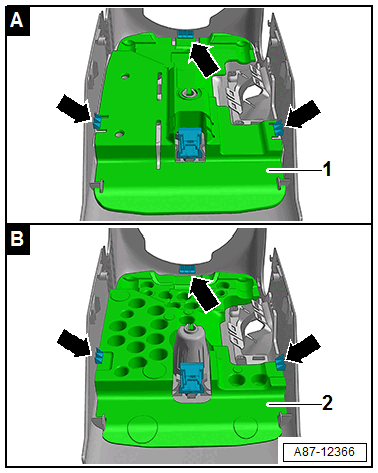

-- Release the plate -1- at the locking tabs -arrows- and remove.
-- Release the insulation -2- at the locking tabs -arrows- and remove.

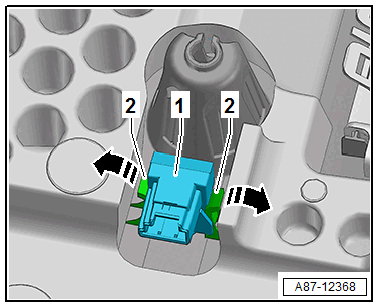

-- Release the retaining tabs -2- in the direction of -arrows-.
-- Remove the Instrument Panel Temperature Sensor -G56- -1-.
