Transmission Fluid, Draining And Filling: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2022 Audi SQ5, 2022 Audi Q5 e, 2022 Audi Q5, 2021 Audi Q5 e, and 2021 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Used Oil Collection and Extraction Unit : SMN372500
- Pressurized Gearbox Oil Filler Kit : VAS6617
- Torx Socket : T60 - T40087
- Protective Eyewear
NOTE:
The 7 speed dual clutch transmission is equipped with an ATF and MTF chamber.

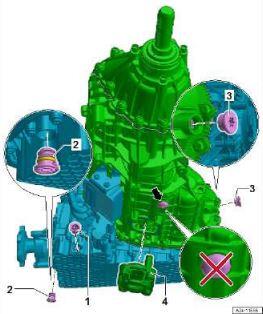

The ATF is located in the blue section of the transmission and is drained through the ATF drain plug -1- and filled through the ATF filler plug -2-.
The MTF is located in the green section of the transmission fluid and is drained by removing the MTF check plug -3-
The bolt on the gear set -arrow- is not a drain plug.
The ATF is located in the blue section of the transmission and is drained through the ATF drain plug -1- and filled through the ATF filler plug -2-.
The MTF is located in the green section of the transmission fluid and is drained by removing the MTF check plug -3-
The bolt on the gear set -arrow- is not a drain plug.
