Cylinder Head Bank 2 (Left), Removing, 3.0L Engine

WARNING: This page is about a different car, the 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi A8 e Quattro, 2020 Audi A8 Quattro, and 2019 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Bung Set: VAS6122
Socket T30: T10405

Procedure

Depending on the model preliminary work may be required. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .

-- Remove the left camshaft housing. Refer to CYLINDER BANK 2 (LEFT) CAMSHAFT HOUSING, REMOVING AND INSTALLING .

Audi A6/A7:

-- Bring the engine mount into the installation position and install the bolts all the way.

-- Lower the engine on the engine mount.

-- Remove the extractor. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

Continuation for All:

-- Remove the coolant pipes. Refer to COOLANT PIPES, REMOVING AND INSTALLING .

Front Coolant Pipe
Left Front Coolant Pipe

-- Remove the oil dipstick tube -2- from the belt pulley side sealing flange.

Fig 1: Cylinder Bank 2 (Left) Coolant Ventilation Line, Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and remove the bleeder line -3- from the cylinder head.

-- Disconnect the vacuum hose -1- at the same time do not damage it.

-- Disconnect the connector -4- for the Engine Coolant Temperature Sensor -G62-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -5- and remove the coolant line -6- and move it to the side.

-- Loosen the screw-type clamp -1- and remove the nuts -3-.

-- Remove the threaded pin -arrows- and remove the coupling -2-.

-- Remove the bolts -3- and the chain tensioner -4-.

Courtesy of AUDI OF AMERICA, LLC

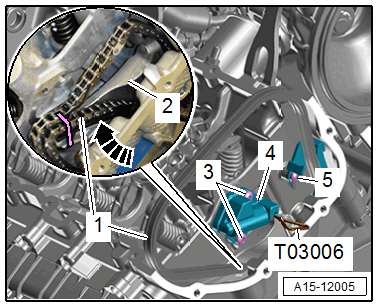

-- Remove the guide rail bolt -5-.

-- If the cylinder head is removed with the engine installed: push the tensioning rail -2- upward -arrow- and secure using a cable tie to the camshaft timing chain -1- as shown.

-- Remove the bolts -arrows and 9-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the cylinder head bolts in the sequence -1 to 8-.

-- Remove the bolts and the cylinder head carefully.

-- Lay the cylinder head on a soft surface, such as foam.

-- Seal the open channels of the intake and exhaust tract with a clean cloth or with completely clean plugs from the : VAS6122 .

To replace the bolt -left lower arrow- ; remove the left intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
