Fuel Tank, Draining, Vehicles With TFSI Engine, Fuel Delivery Unit (Fuel Pump) Not Faulty
Special tools and workshop equipment required
- Fuel Extractor: VAS5190A
- Fuel Extraction - Adapter 2: VAS5190/2
Procedure
-- Attach the : VAS5190/2 -2- to the suction hose -1- on the : VAS5190A .
-- Open the fuel filler door.
-- Remove the fuel filler neck cap -arrow-.
CAUTION:
There is a risk of the fuel tank exploding due to electrostatic discharge.
Severe injuries and burns are possible.
- Attach the fuel siphoning device ground cable to a bare area on the body.

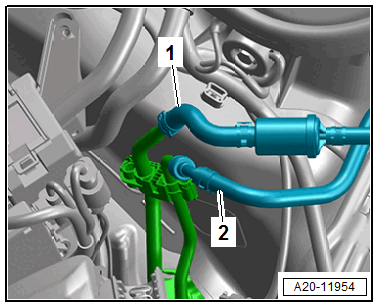

-- Disconnect the fuel hose -2-. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

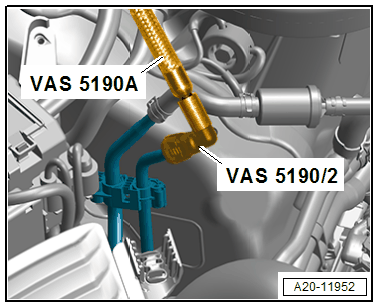

-- Attach the suction hose with : VAS5190/2 to the supply line in the engine compartment.
-- Use the : VAS5190A to drain the fuel tank through the supply line.
Assembling
Assembly is performed in reverse order.
