A/C Compressor Ribbed Belt, Removing And Installing: Installing

Install in reverse order of removal and note the following:

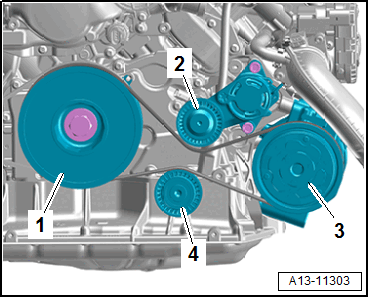

-- Install the ribbed belt. Refer to Figure.

-- Check whether the ribbed belt is routed correctly.

-- Start the engine and check the ribbed belt routing.

There are different procedures depending on the model. Refer to RIBBED BELT, REMOVING AND INSTALLING .
