Upper Air Duct Pipe, Removing And Installing, AUDI S8: Removing
Special tools and workshop equipment required
- Socket T30: T10405
Removing
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

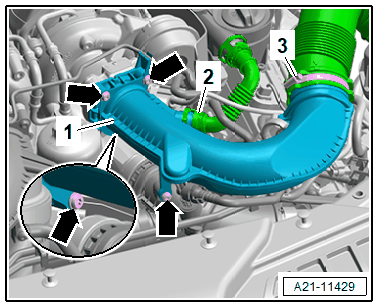

Left Air Duct Pipe:
-- Loosen the hose clamp -3- and remove the air duct hose.
-- Remove the air duct hose -2- by pressing the release buttons on both sides.
-- Remove the screws -arrows-.
-- Free up the air duct pipe -1- and remove them upward at the same time pay attention to the Venturi injector.

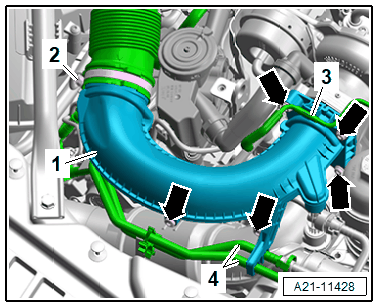

Right Air Duct Pipe:
-- Loosen the clamp -2- and remove the air duct hose.
-- Free up the lines -3 and 4- for the vacuum and EVAP system.
-- Remove the screws -arrows-.
-- Free up the air duct pipe -1- and remove them upward at the same time pay attention to the Venturi injector.
