Upper Air Duct Pipe, Removing And Installing, AUDI A8: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

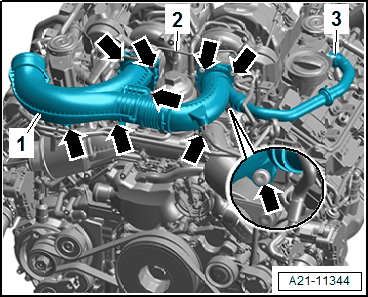

-- Loosen the hose clamps -arrows- and remove the air duct pipe -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum line -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air duct hose -3- by pressing the release buttons on both sides.

-- Remove the bolts -arrows- and free up the air duct pipe -1- and remove them upward, at the same time pay attention to the venturi injector.
