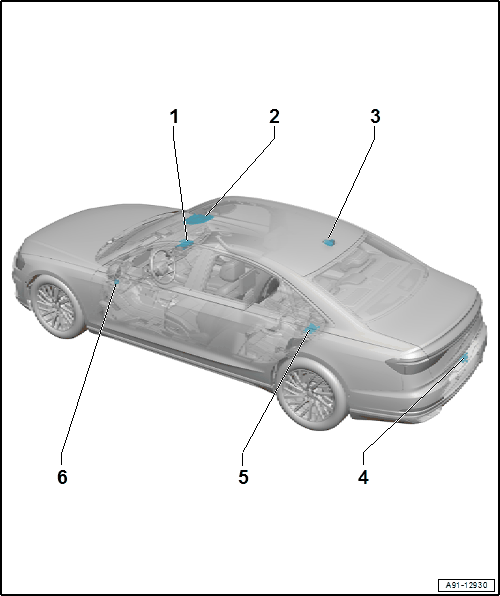

Component Location Overview - Mobile Online Services, Through My 2018 And From My 2019, Without Connect Plus, IV0

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Behind the glove compartment
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
2. Front Roof Module -WX3-
   • Left Front Microphone -R140-
   • Right Front Microphone -R141-
   • Interior Microphone -R74-
   • Overview. Refer to OVERVIEW - MICROPHONE UNIT .
3. Roof Antenna -R216-
   • GPS Antenna -R50-
   • Emergency Call Module Antenna 2 -R322-
   • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
4. Emergency Call Module Antenna -R263-
   • Behind the rear bumper cover in the center
   • Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, THROUGH MY 2018 AND FROM MY 2019, WITHOUT CONNECT PLUS, IV0 .
5. Data Bus on Board Diagnostic Interface -J533-
   • Underneath the rear bench seat
   • Removing and Installing. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, REMOVING AND INSTALLING .
   • The appropriate Wiring Diagram
6. Emergency Call Module Speaker -R335-
   • In the driver side instrument panel cover
   • Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
