Right And Left MULTIFUNCTION Buttons On Steering Wheel -E441- / -E440-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Remove the chrome trim. Refer to OVERVIEW - STEERING WHEEL .

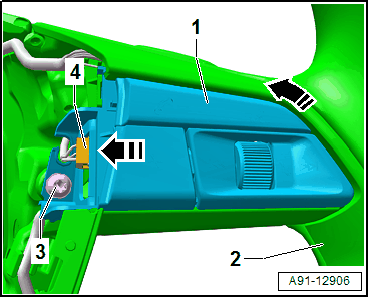

-- Remove the bolt -3-.

GWWA91-12906Courtesy of AUDI OF AMERICA, LLC

-- Pry out the multifunction button -1- on the other side in direction of -arrows- using the : 3409  .

GWWA91-12906Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -4- from the multifunction button.
