LTE Antenna 2 -R306-, REMOVING AND INSTALLING, EL3+IW1/IW3/IW5: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the right C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

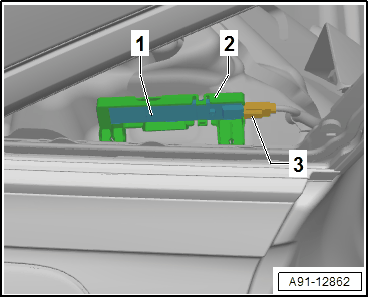

-- Release and disconnect the connector -3-.

GWWA91-12862Courtesy of AUDI OF AMERICA, LLC

-- Unclip the LTE Antenna 2 -R306- -1- from the bracket -2-.
