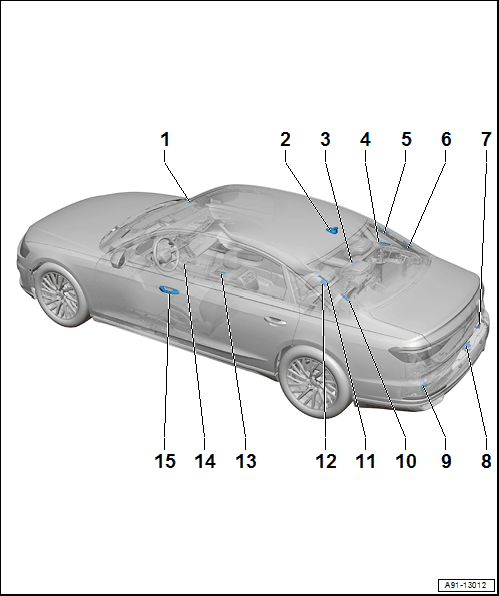

Component Location Overview - Antenna Systems, Through My 2018 And IW1/IW3/IW5, From My 2019 Without Connect Plus (IV0) And IW1/IW3/IW5

Courtesy of AUDI OF AMERICA, LLC

1. Vehicle Interior Communication Antenna -R364-
   • Removing and Installing. Refer to Vehicle Interior Communication Antenna -R364-, REMOVING AND INSTALLING .
2. Roof Antenna -R216-
   • Antenna assignment depends on equipment. Refer to OVERVIEW - ANTENNA SYSTEMS, THROUGH MY 2018 AND FROM MY 2019, WITHOUT CONNECT PLUS, IV0 .
   • Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
3. GPS Antenna Splitter -R110-
   • Removing and Installing. Refer to GPS ANTENNA SPLITTER, REMOVING AND INSTALLING, 7G1/7I1/7I2/IV0 .
4. LTE Antenna 2 -R306-
   • Removing and Installing. Refer to LTE Antenna 2 -R306-, REMOVING AND INSTALLING, EL3+IW1/IW3/IW5 .
5. Antenna Amplifier -R24-
   • Removing and Installing. Refer to Antenna Amplifier -R24-, REMOVING AND INSTALLING .
6. TV Antenna Amplifier 1 -R82-
   • Removing and Installing. Refer to TV Antenna Amplifier 1 -R82-, REMOVING AND INSTALLING .
7. LTE Antenna 3 -R330-
   • Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
8. Emergency Call Module Antenna -R263-
   • Removing and Installing. Refer to Emergency Call Module Antenna -R263-, REMOVING AND INSTALLING, THROUGH MY 2018 AND FROM MY 2019, WITHOUT CONNECT PLUS, IV0 .
9. LTE Antenna 4 -R331-
   • Removing and Installing. Refer to LEFT AND RIGHT BUMPER ANTENNAS, REMOVING AND INSTALLING .
10. TV Antenna Amplifier 2 -R83-
    • Removing and Installing. Refer to TV Antenna Amplifier 2 -R83-, REMOVING AND INSTALLING .
11. Windshield Antenna Suppression Filter -C18-
    • Removing and Installing. Refer to WINDSHIELD ANTENNA SUPPRESSION FILTER, REMOVING AND INSTALLING .
12. Antenna Amplifier 2 -R111-
    • Removing and Installing. Refer to Antenna Amplifier 2 -R111-, REMOVING AND INSTALLING .
13. Close Range Communication Antenna 2 -R351-
    • In the Mobile Device Charger 1 -J1146-
    • Removing and Installing. Refer to Close Range Communication Antenna 2 -R351-, REMOVING AND INSTALLING .
14. Close Range Communication Control Module 2 -J1170-
    • Removing and Installing. Refer to Close Range Communication Control Module 2 -J1170-, REMOVING AND INSTALLING .
15. Close Range Communication Antenna -R350-
    • In the Close Range Communication Control Module -J1169-
    • Removing and Installing. Refer to Close Range Communication Antenna -R350-, REMOVING AND INSTALLING .
