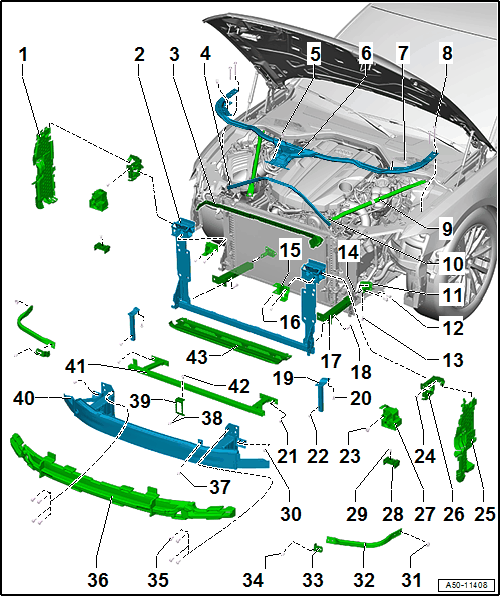

Overview - Lock Carrier
- Air Duct
- Right
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Sealing Profile
- Upper
- Diagonal Brace
- Bolt
- Quantity: 2
- 8 Nm
- Connecting Part
- For the lock carrier
- Removing and Installing. Refer to CONNECTION PIECE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 8 Nm
- Bolt
- Quantity: 4
- 23 Nm
- Brace
- Bolt
- Quantity: 4
- 24 Nm
- Bracket
- For the longitudinal member
- Removing and Installing. Refer to LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 23 Nm
- Bolt
- Quantity: 2
- 23 Nm
- Bolt
- Quantity: 6
- 10 Nm
- Bracket
- For the radiator mount
- Bolt
- Quantity: 4
- 8 Nm
- Longitudinal Member
- Removing and Installing. Refer to LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- 23 Nm
- Brace
- Bolt
- Quantity: 4
- 5 Nm
- Bolt
- Quantity: 4
- 5 Nm
- Bolt
- Quantity: 2
- 5 Nm
- Bolt
- Quantity: 4
- 5 Nm
- Bolt
- Quantity: 4
- 5 Nm
- Air Duct
- Left
- Bracket
- Spacer
- Support
- Bolt
- Quantity: 2
- 5 Nm
- Bolt
- Quantity: 4
- 8 Nm
- Nut
- Quantity: 4
- 8 Nm
- Brace
- Bracket
- Bolt
- Quantity: 4
- 5 Nm
- Bolt
- Quantity: 8
- 30 Nm
- Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- Quantity: 2
- 5 Nm
- Strap
- Impact Member
- Overview. Refer to OVERVIEW - IMPACT MEMBER .
- Crossmember
- Bolt
- Quantity: 2
- 5 Nm
- Sealing Profile
- Lower
