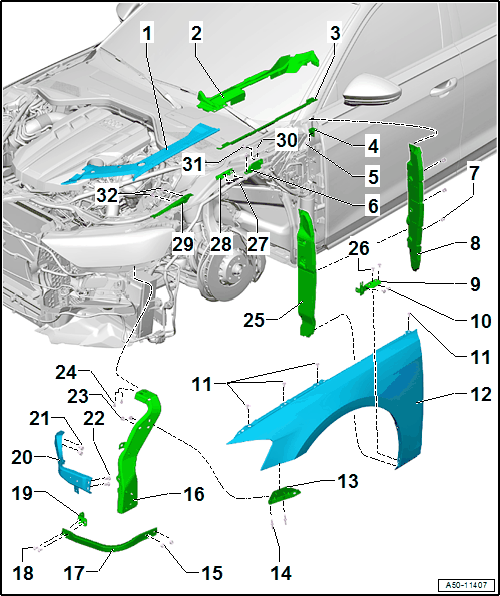

Overview - Fender
- Front Cover for Fender
- Removing and Installing. Refer to FENDER FRONT COVER, REMOVING AND INSTALLING .
- Side Cover for Plenum Chamber Cover
- Replace after removing.
- Removing and Installing. Refer to PLENUM CHAMBER SIDE COVER, REMOVING AND INSTALLING .
- Rear Cover for Fender
- Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
- Bracket
- Bolt
- 10 Nm
- Bracket
- Expanding Rivet
- Quantity: 3
- End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bracket
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- Quantity: 4
- 10 Nm
- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bracket
- Double Bolt
- Quantity: 2
- 8 Nm
- Nut
- Quantity: 2
- 8 Nm
- Fender Brace
- Vertical
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING, VERTICAL .
- Connecting Piece
- Bolt
- Quantity: 2
- 8 Nm
- Retaining Bracket
- Fender Brace
- Horizontal
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING, HORIZONTAL .
- Bolt
- Quantity: 2
- 24 Nm
- Bolt
- Quantity: 2
- 24 Nm
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- Quantity: 2
- 10 Nm
- Insulation
- Locked between the fender and A-pillar.
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- Quantity: 2
- 10 Nm
- Bracket
- Bracket
- Bolt
- Quantity: 2
- 10 Nm
- Bolt
- 10 Nm
- Bolt
- Quantity: 2
- 10 Nm
