Hydraulic Pump Supply Pressure, Checking, 100 And A6

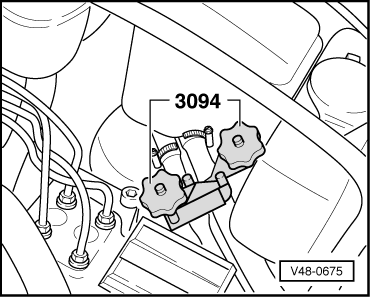

-- Install hose clamps, Snap-On Model YA2850 or equivalent, on suction and pressure hoses.

Courtesy of AUDI OF AMERICA, LLC

-- Press spring clamp and disconnect harness connector from fuel injector.

Fig 1: Removing Line From Pressure Hose

Courtesy of AUDI OF AMERICA, LLC

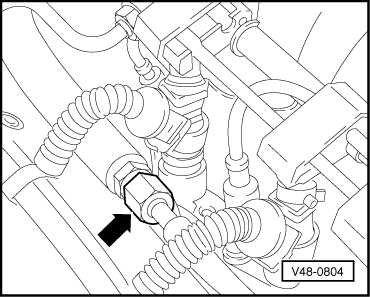

-- Tightly hold hex fitting on flexible pressure hose, and disconnect threaded connection (arrow).

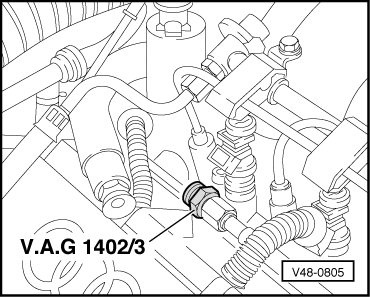

-- Install adapter US 1074/4C in the line in place of pressure hose.

Fig 2: Identifying Adapter V. A. G 1402/3

Courtesy of AUDI OF AMERICA, LLC

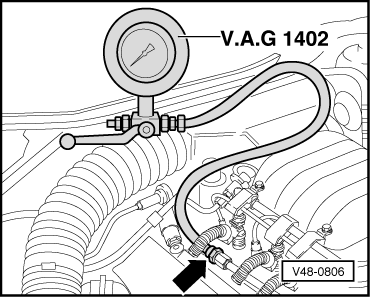

-- Install hose of pressure gauge US 1074 on adapter US 1074/4C.

Fig 3: Screwing Power Steering Test Unit V. A. G 1402 Onto Adapter V. A. G 1402/3

Courtesy of AUDI OF AMERICA, LLC

-- Close locking valve of gauge (lever to left).

-- Install connector on fuel injector.

-- Remove hose clamps from suction and pressure hoses.

-- Start engine.

-- At idle, read pump pressure on gauge.

Measurement must last no longer than 10 seconds.

Specified value: 120-130 bar (1740-1885 psi)

-- Stop engine (switch ignition off).

NOTE:

If specified value is not obtained, replace hydraulic pump.

-- Install hose clamp on suction and pressure hose.

-- Disconnect harness connector from fuel injector.

-- Remove pressure gauge hose from adapter and put gauge aside.

-- Take adapter off pressure line.

-- Connect pressure hose to line by holding pressure hose hex.

-- Install connector on fuel injector.

-- Remove hose clamps from pressure and suction hoses.

-- Let engine idle for approx. 2 minutes with front wheels pointed straight ahead.

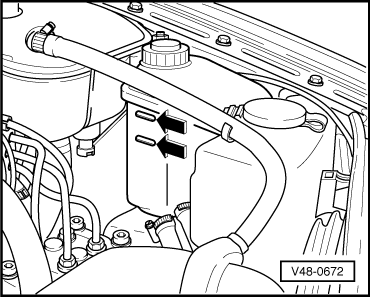

-- Stop engine (switch ignition off) and immediately check power steering fluid level, noting marks on reservoir or dipstick, if necessary top off to MAX mark.

Courtesy of AUDI OF AMERICA, LLC

-- Check steering system for leaks.
