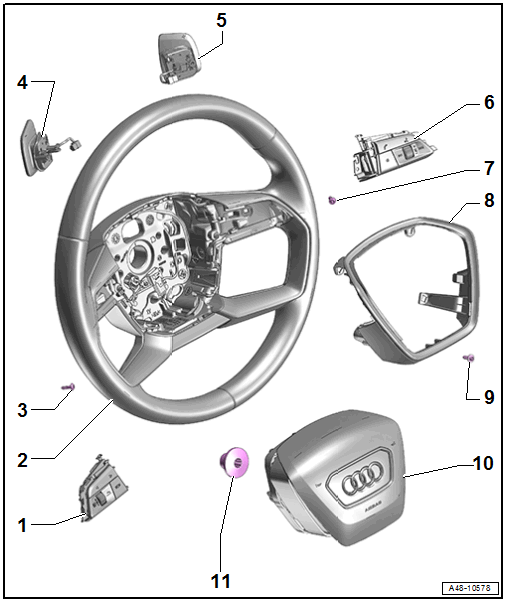

Overview - Steering Wheel
- Left Multifunction Buttons on Steering Wheel -E440-
- Overview. Refer to GENERAL INFORMATION - MULTIFUNCTION STEERING WHEEL .
- Steering Wheel
- Equipped on some models: with Heated Steering Wheel Sensor -G428- and Heated Steering Wheel -Z36-
- Removing and Installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to GENERAL INFORMATION - MULTIFUNCTION STEERING WHEEL .
- Tiptronic Downshift Button -E480-
- Overview. Refer to GENERAL INFORMATION - MULTIFUNCTION STEERING WHEEL .
- Tiptronic Upshift Button -E479-
- Overview. Refer to GENERAL INFORMATION - MULTIFUNCTION STEERING WHEEL .
- Right Multifunction Buttons on Steering Wheel -E441-
- Overview. Refer to GENERAL INFORMATION - MULTIFUNCTION STEERING WHEEL .
- Bolt
- Tightening specification. Refer to GENERAL INFORMATION - MULTIFUNCTION STEERING WHEEL .
- Trim
- For the steering wheel
- Bolt
- 1.2 Nm
- Driver Side Airbag
- Safety precautions when working on the airbags. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- 30 Nm + 90°
- Replace after removing.
