Overview - Dynamic Steering

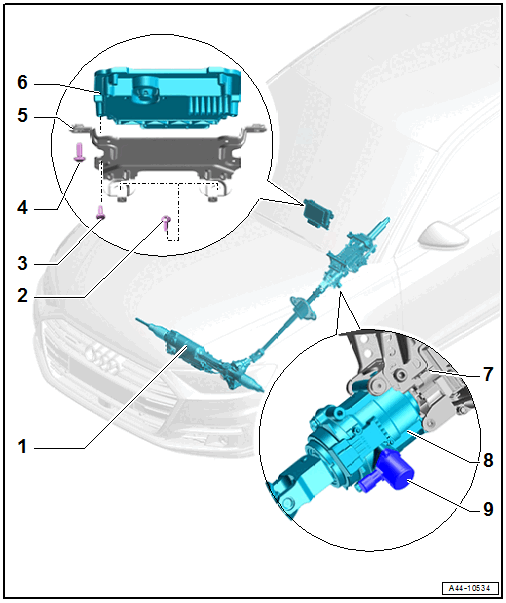

Fig 1: Overview - Dynamic Steering Exploded View

Courtesy of AUDI OF AMERICA, LLC

Steering Gear
- With
  - Electromechanical Power Steering Motor -V187-
  - Power Steering Control Module -J500-
Bolt
- 6 Nm
Bolt
- 6 Nm
Bolt
- 6 Nm
Bracket
- For the Active Steering Control Module -J792-
Active Steering Control Module -J792-
- Component location: in front of the driver seat
- Removing and installing. Refer to Active Steering Control Module -J792-, REMOVING AND INSTALLING .
- Perform the basic setting after replacing using the Vehicle Diagnostic Tester. Refer to DYNAMIC STEERING BASIC SETTING
Steering Column
- Overview. Refer to OVERVIEW - STEERING COLUMN .
- Perform the basic setting after replacing using the Vehicle Diagnostic Tester. Refer to DYNAMIC STEERING BASIC SETTING
Active Steering Motor -V477-
- Replace the steering column if faulty. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
Active Steering Safety Lock Actuator -F437-
- Removing and installing. Refer to ACTIVE STEERING SAFETY LOCK (LOCKING SOLENOID), REMOVING AND INSTALLING .
