Backrest Heating Element, Removing And Installing: Procedure
WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.
- Cover and cushion separated. Refer to COVER AND CUSHION, SEPARATING .

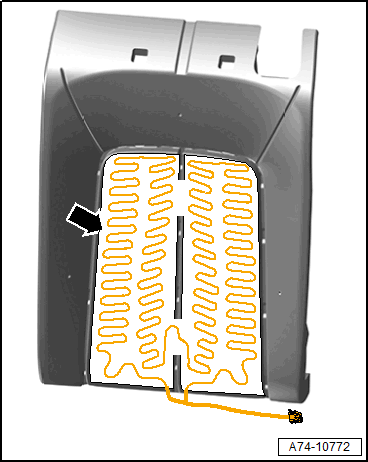

-- Align the new heating element -arrows- on the cushion.
-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.
-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.
-- Route the connecting wires to the individual heating elements in the base of the gaps.
TIP:
The Standard/Sport seat in leather is shown.
Further installation is the reverse order of removal.
