Driver/Front Passenger Backrest Heating Element -Z7- / -Z9-, Removing And Installing: Procedure

WARNING: This page is about a different car, the 2022 Audi RS 6 Avant and 2021 Audi RS 6 Avant. However, it is still accessible from the selected car via links, so may be relevant.

Cover and cushion separated. Refer to BACKREST COVER AND CUSHION, SEPARATING .

-- Cut the wire directly on the old heating element.

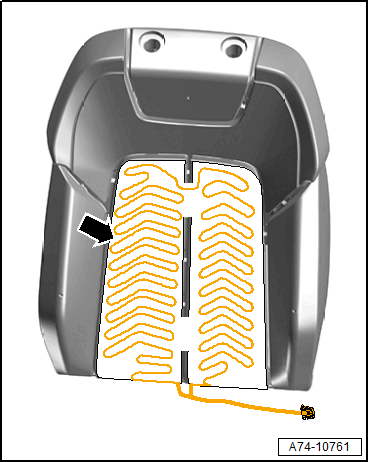

Standard Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Align the new heating element -arrow- on the cushion.

-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.

-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

TIP:

The version in leather is shown.

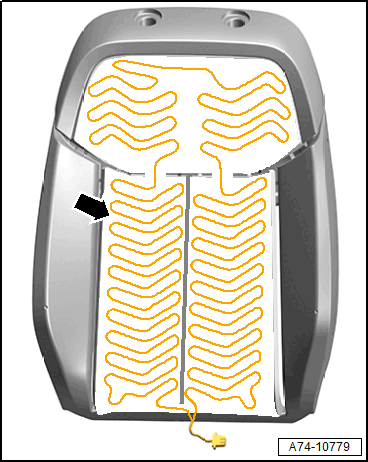

Sport Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Align the new heating element -arrow- on the cushion.

-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.

-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

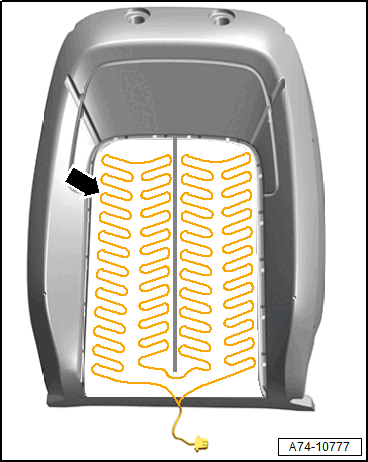

Comfort Seat:

Courtesy of AUDI OF AMERICA, LLC

-- Align the new heating element -arrows- on the cushion.

-- Peel the protective film off the heating element one after the other. Be careful not to damage the heating element.

-- Glue the heating element so that it aligns with the old heating element and is not wrinkled.

-- Route the connecting wires to the individual heating elements in the base of the gaps.

Continuation:

Further installation is the reverse order of removal.
